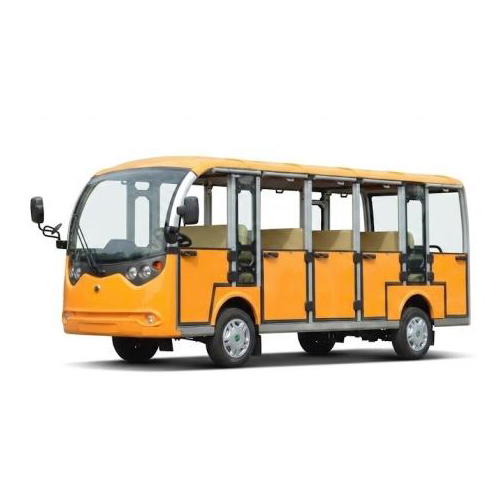

14 Seater Shuttle Bus
Model No.：LT-S14.F (Half-open door version)
System：72V AC system
Battery: Lvtong maintenance-free battery 6V/200AH *12units
Motor: Lvtong AC motor options 7,5-11KW
Kerb mass: 1450 kg (730Kg/ 720Kg)
Gross mass: 2360 kg (1110Kg/ 1250Kg)
Overall dimensions:LWH (mm)5000*1560*2050mm
Passenger: capacity 14
Max. speed: 30km/h
Max. climbing ability (loaded): 20%
Controller: LVTONG
Charger: Offboard charger 72V 25A, input 220V/110V
Front wheel tread (mm): 1300
Rear wheel tread (mm): 1320
Wheel base: 2750 mm
Braking system: Front disc and rear drum, four wheel hydraulic brake + handbrake parking; electric vacuum assist brake system
Front suspension system McPherson Independent suspension, helical spring +cylinder hydraulic shock absorption
Rear suspension system Integral type transaxle, gear ratio 16:1, splate spring, cylinder hydraulic shock absorption
Tire diameter 165/70R13C tubeless tyre
- Parameters
Model No.：LT-S14.F (Half-open door version)
System：72V AC system
Battery: Lvtong maintenance-free battery 6V/200AH *12units
Motor: Lvtong AC motor options 7,5-11KW
Kerb mass: 1450 kg (730Kg/ 720Kg)
Gross mass: 2360 kg (1110Kg/ 1250Kg)
Overall dimensions:LWH (mm)5000*1560*2050mm
Passenger: capacity 14
Max. speed: 30km/h
Max. climbing ability (loaded): 20%
Controller: LVTONG
Charger: Offboard charger 72V 25A, input 220V/110V
Front wheel tread (mm): 1300
Rear wheel tread (mm): 1320
Wheel base: 2750 mm
Braking system: Front disc and rear drum, four wheel hydraulic brake + handbrake parking; electric vacuum assist brake system
Front suspension system McPherson Independent suspension, helical spring +cylinder hydraulic shock absorption
Rear suspension system Integral type transaxle, gear ratio 16:1, splate spring, cylinder hydraulic shock absorption
Tire diameter 165/70R13C tubeless tyre
Copy product links
Long by picture save/share
INQUIRY
enquiry form：
Inquiry Content：
You have no items to require
Add Successfully
INQUIRY
enquiry form：
Inquiry Content：
You have no items to require
Add Successfully
Color Options
Remark:
The Photo is only for reference,please make the object as the standard.If for other colors,there will be extra charge and the production time will be longer.
| White | Blue | Silver White | Yellow | Red | Lemon Green | |||||
| Green | Champagne | Black | Pink | Ferrari Red | Sky Blue |
