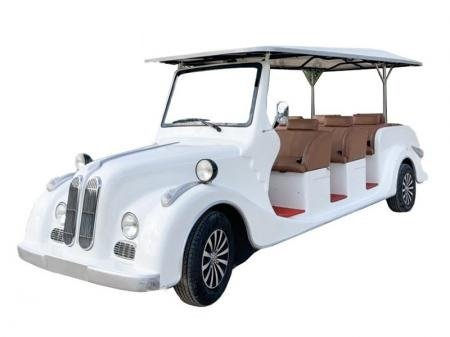

8 Seater Electric Classic Car

    Model:  LT-S8.FB

    System: 72V 7.5KW AC system

    Motor:  AQHT7.5-4004C (7.5KW AC motor)

    Battery: Maintenance free battery 6Vx12pcs

                   LVTONG 200AHx12pcs (battery lead acid)

    Controller: LVTONG

    Charger: Offboard charger 72V 25A, input 220V/110V

    Passenger: capacity 8

    Range (loaded) based on flat road at a speed of 20km/h: >60km

    Max. speed: 30km/h

    Minimum turning radius: 6.5 m

    Max. climbing ability (loaded): 20%

    Kerb Mass: 1120 Kg

    Gross mass: 1650 Kg

    Overall dimensions: LWH (mm) 5000*1500*2050 mm

    Min. ground clearance (mm): 175

    Front wheel tread (mm): 1220

    Rear wheel tread (mm): 1320

    Wheelbase (mm): 3460


  • Parameters

    Model:  LT-S8.FB

    System: 72V 7.5KW AC system

    Motor:  AQHT7.5-4004C (7.5KW AC motor)

    Battery: Maintenance free battery 6Vx12pcs

                   LVTONG 200AHx12pcs (battery lead acid)

    Controller: LVTONG

    Charger: Offboard charger 72V 25A, input 220V/110V

    Passenger: capacity 8

    Range (loaded) based on flat road at a speed of 20km/h: >60km

    Max. speed: 30km/h

    Minimum turning radius: 6.5 m

    Max. climbing ability (loaded): 20%

    Kerb Mass: 1120 Kg

    Gross mass: 1650 Kg

    Overall dimensions: LWH (mm) 5000*1500*2050 mm

    Min. ground clearance (mm): 175

    Front wheel tread (mm): 1220

    Rear wheel tread (mm): 1320

    Wheelbase (mm): 3460
