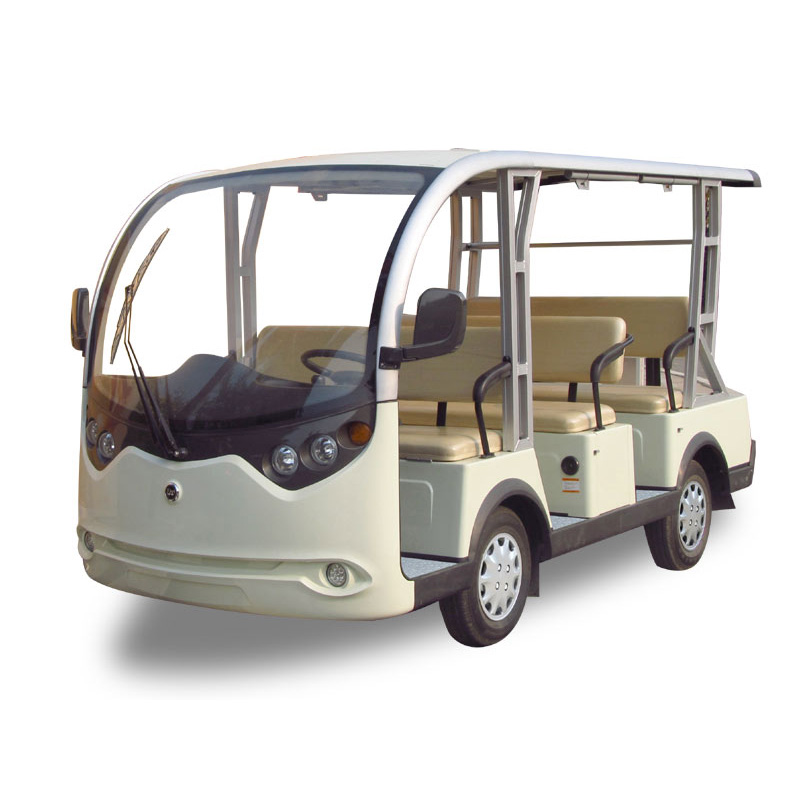

Customized 8 Seaters Shuttle bus
Model No.：LT-S8
System：48V 5KW AC system
Motor：AQHT5-4004B (5KW AC motor)
Battery：Maintenance free battery 6Vx8pcs
LVTONG 225AHx8 pcs (battery lead acid)
Controller：LVTONG
Charger：Onboard charger 48V - input 220V/110V
Passenger capacity：8
Range (loaded) based on flat road at a speed of 20km/h ：>60km
Max. speed : 30km/h
Minimum turning radius : 5m
Max. climbing ability (loaded) : 25%
Max. movement after brake:<4.8m
Kerb Mass: 880 Kg
Gross mass: 1720 Kg
Overall dimensions:LWH (mm):3900*1480*2050mm
Min. ground clearance (mm): 130
Front wheel tread (mm): 1260
Rear wheel tread (mm): 1320
Wheelbase (mm) :1860
- Parameters
Model No.：LT-S8
System：48V 5KW AC system
Motor：AQHT5-4004B (5KW AC motor)
Battery：Maintenance free battery 6Vx8pcs
LVTONG 225AHx8 pcs (battery lead acid)
Controller：LVTONG
Charger：Onboard charger 48V - input 220V/110V
Passenger capacity：8
Range (loaded) based on flat road at a speed of 20km/h ：>60km
Max. speed : 30km/h
Minimum turning radius : 5m
Max. climbing ability (loaded) : 25%
Max. movement after brake:<4.8m
Kerb Mass: 880 Kg
Gross mass: 1720 Kg
Overall dimensions:LWH (mm):3900*1480*2050mm
Min. ground clearance (mm): 130
Front wheel tread (mm): 1260
Rear wheel tread (mm): 1320
Wheelbase (mm) :1860
Copy product links
Long by picture save/share
INQUIRY
enquiry form：
enquiry content：
You have no items to require
Add Successfully
INQUIRY
enquiry form：
enquiry content：
You have no items to require
Add Successfully
Color Options
Remark:
The Photo is only for reference,please make the object as the standard.If for other colors,there will be extra charge and the production time will be longer.
| White | Blue | Silver White | Yellow | Red | Lemon Green | |||||
| Green | Champagne | Black | Pink | Ferrari Red | Sky Blue |
